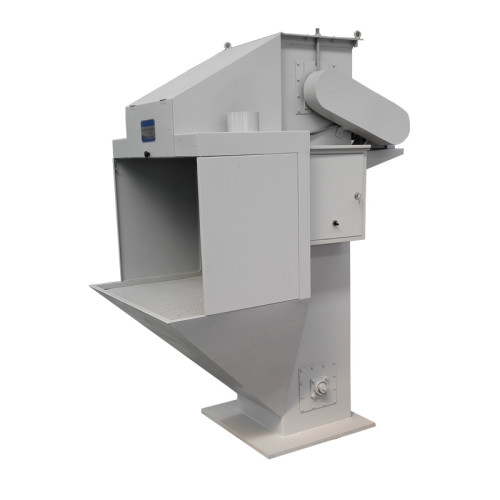

Sand spreading machine pouring sand machine suitable for large castings

Group Casting machine
Min. Order 1 piece
Terms of Payment all
Update Time 2020-01-13
  • Description
  • Product review
Production Introduction and Application

1. Caught in the open sand, easy operation, a large space, easy to observe, suitable for medium and large pieces of sand hanging

2. Pour sand evenly and pour sand volume adjustable

3. Used in conjunction with the dust collector, it can improve the quality of sand leaching and reduce environmental pollution.

4. The three sides of the sand bucket are widened by 120mm.

Specification
Model
OBT-6
Amount of sand
6m3/h
Sanding area
520*580mm
Max sanding height
770mm
Roller speed
40.8-98.1r/min(Adjustable)
Power
1.5KW
Voltage
380V
Dimensions
1760*1080*2410mm
Weight
400kg
